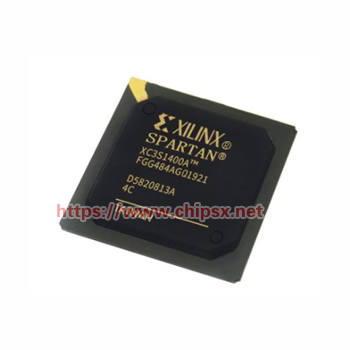

AMD Xilinx Spartan-3 FPGA Embedded IC CORTEX-A9 484-FBGA
Part Number # XC3S1400A-4FGG484C is available at ChipsX. As a leading global distributor of AMD Xilinx FPGA Chips, ChipsX has more than 10 years of Semiconductors Integrated Circuits(ICs) industry experience, with customers all over the world. We can quickly help customers with the most competitive price to obtain the manufacturer’s new original chip.
Datasheet| Categories | Integrated Circuits |
| Manufacturer | Xilinx Inc. |
| Status | Active |
| Number of LABs/CLBs | 2816 |
| Number of Logic Elements/Cells | 25344 |
| Total RAM Bits | 589824 |
| Number of I/O | 375 |
| Number of Gates | 1400000 |
| Supply Voltage – Operating | 1.14 V to 1.26 V |
| Mounting | SMD (SMT) |
| Temperature Range – Operating | 0°C to 85°C (TJ) |
| Case / Package | 484-FBGA (23×23) |
| Is this a common-used part? | Yes |
| Popularity | High |
| Fake Threat In the Open Market | 64 pct. |
| Supply and Demand Status | Balance |
| Family Name | XC3S1400A |
| Introduction Date | 39055 |
| ECCN | 3A991.d |
| Country of Origin | Republic of Korea, Taiwan |
| Estimated EOL Date | 2022 |
| Alternative Parts | AGL1000-FFG484I; A3P400-FGG484; A3P400-FG484; |
Step into the future of digital design with the XC3S1400A-4FGG484C FPGA, a commanding member of the Xilinx Spartan-3A family. This Field-Programmable Gate Array (FPGA) paves the way for a new era of innovation, empowering engineers and developers to transform their visionary concepts into reality through the limitless potential of reconfigurable logic.
Let's explore the foundational specifications and capabilities that make the XC3S1400A-4FGG484C FPGA an exceptional choice for a wide spectrum of applications:
Family: Proudly part of the esteemed Spartan-3A FPGA family.
Logic Units: Boasting an impressive 1,400,000 logic units, offering abundant resources for intricate designs.
Slices: Equipped with 96,768 slices, providing unparalleled flexibility for efficient logic implementation.
Block RAM: Featuring 576 blocks of Block RAM, with each block providing 18 Kb of memory.
Clock Management: Seamlessly incorporate and manage clock signals using integrated Digital Clock Managers (DCMs).
I/O Pins: Abundant connectivity with 484 I/O pins, enabling versatile interfacing possibilities.
Operating Voltage: Operates efficiently at 1.2V, achieving a balance between performance and power consumption.
Package Type: Safeguarded within a 484-pin Fine-Pitch Ball Grid Array (FBGA) package for reliability.
The XC3S1400A-4FGG484C FPGA serves as the gateway to a diverse array of applications, spanning from advanced embedded systems and cutting-edge digital signal processing to industrial automation and more. Its adaptability and substantial resource pool make it an indispensable asset for visionaries and engineers, ready to turn their most ambitious ideas into reality.
Welcome to a future where innovation knows no bounds. Embrace the potential of the XC3S1400A-4FGG484C FPGA, and embark on a journey to redefine the very possibilities of digital design. With this FPGA as your partner, the future of technology is firmly within your grasp.
