| Categories | Integrated Circuits |
| Manufacturer | Xilinx Inc. |
| Status | Active |
| Number of LABs/CLBs | 1920 |
| Number of Logic Elements/Cells | 17280 |
| Total RAM Bits | 442368 |
| Number of I/O | 173 |
| Number of Gates | 1000000 |
| Supply Voltage – Operating | 1.14 V to 1.26 V |
| Mounting | SMD (SMT) |
| Temperature Range – Operating | -40°C to 100°C (TJ) |
| Case / Package | 256-FTBGA (17×17) |
| Is this a common-used part? | Yes |
| Popularity | High |
| Fake Threat In the Open Market | 66 pct. |
| Supply and Demand Status | Balance |
| Family Name | XC3S1000 |
| Introduction Date | 38181 |
| ECCN | EAR99 |
| Country of Origin | Philippines, Republic of Korea, Taiwan, Singapore |
| Halogen Free | Compliant |
| Estimated EOL Date | 2025 |

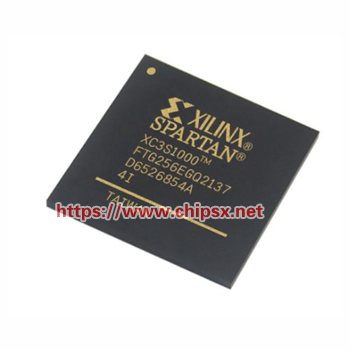

Prepare to redefine the landscape of digital design with the XC3S1000-4FTG256I FPGA, a formidable member of Xilinx's Spartan-3 family. This Field-Programmable Gate Array (FPGA) empowers engineers and developers to bring their innovative ideas to life through the power of reconfigurable logic.
Let's delve into the essential specifications and capabilities that make the XC3S1000-4FTG256I FPGA an outstanding choice for a wide range of applications:
Family: Proudly part of the esteemed Spartan-3 FPGA family.
Logic Units: Featuring a robust 1,000,000 logic units, offering ample resources for complex designs.
Slices: Equipped with 76,800 slices, providing flexibility for efficient logic implementation.
Block RAM: Boasting 432 blocks of Block RAM, with each block offering 18 Kb of memory.
Clock Management: Seamlessly incorporate and manage clock signals using integrated Digital Clock Managers (DCMs).
I/O Pins: Abundant connectivity with 256 I/O pins, enabling versatile interfacing possibilities.
Operating Voltage: Operates efficiently at 1.2V, striking a balance between performance and power consumption.
Package Type: Safeguarded within a 256-pin Fine-Pitch Ball Grid Array (FBGA) package for reliability.
The XC3S1000-4FTG256I FPGA serves as a gateway to a diverse array of applications, spanning from embedded systems and digital signal processing to industrial automation and beyond. Its adaptability and substantial resource pool make it a prized asset for innovators and engineers, ready to turn their visions into reality.
Welcome to a future where innovation knows no bounds. Embrace the potential of the XC3S1000-4FTG256I FPGA, and embark on a journey to redefine digital design possibilities. With this FPGA as your ally, the future of technology is firmly within your grasp.
