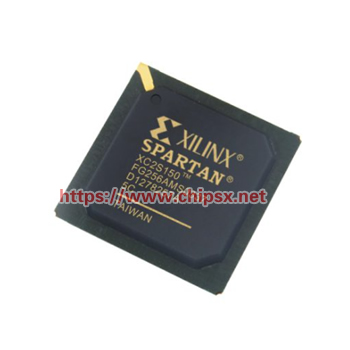

AMD Xilinx Spartan-II FPGA Embedded IC XC2S150 CORTEX-A9 263MHZ 256-FBGA
Part Number # XC2S150-5FG256C is available at ChipsX. As a leading global distributor of AMD Xilinx FPGA Chips, ChipsX has more than 10 years of Semiconductors Integrated Circuits(ICs) industry experience, with customers all over the world. We can quickly help customers with the most competitive price to obtain the manufacturer’s new original chip.
DatasheetThe XC2S150-5FG256C is a specific model within Xilinx's Spartan-II FPGA family. Spartan-II FPGAs were known for their cost-effectiveness and versatility. Let's explore the details of this FPGA:
Series: The XC2S150 belongs to the Spartan-II series of FPGAs, which were widely used in various applications.
Speed Grade (-5): The "-5" speed grade typically indicates a standard performance rating within the Spartan-II series. It's a general-purpose speed grade suitable for a wide range of applications.
Package Type (FG256): FG256 signifies the package type and pinout of this FPGA, specifying its physical dimensions and pin arrangement. The "256" likely indicates the number of pins or balls on the package.
Unique Features ("C"): The "C" suffix in the part number may denote specific features or characteristics that differentiate this FPGA model from others within the same family. These features could include additional functionality or tailored performance characteristics.
Industry Applications:
The XC2S150-5FG256C FPGA was used in various industry sectors, including but not limited to:
Industrial Control and Automation: Spartan-II FPGAs like this one were commonly used in industrial control and automation systems for tasks such as process control, monitoring, and robotics.
Embedded Systems: They could be integrated into embedded systems, including control systems for appliances, security systems, and custom logic for various devices.
Communications: Spartan-II FPGAs were used in communication equipment, such as network switches, routers, and data communication devices, to provide programmable processing capabilities.
Consumer Electronics: They found applications in consumer electronics like gaming consoles, set-top boxes, and digital cameras for custom signal processing and control functions.
Prototyping and Development: FPGA development boards based on Spartan-II FPGAs were popular choices for prototyping and developing custom digital logic circuits and algorithms.
Education and Research: Educational institutions and research projects used these FPGAs for teaching digital design and conducting experiments in digital systems.
It's important to note that Spartan-II FPGAs are older models, and their usage has become less common as newer FPGA families with enhanced features and performance have been introduced. Designers and engineers today often opt for more recent FPGA families from Xilinx or other manufacturers to take advantage of the latest technology and capabilities.
