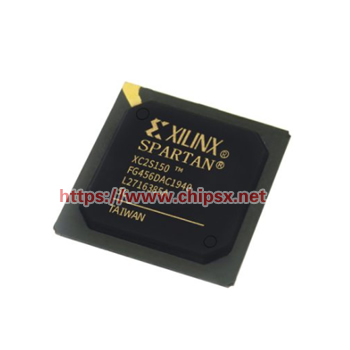

XC2S150-5FG456C
XC2S150-5FG456C ECAD Model
XC2S150-5FG456C Attributes
| Type | Description | Select |
|---|---|---|
| Mfr Part # | XC2S150-5FG456C | |
| Mfr | AMD | |
| Description | IC FPGA 260 I/O 456FBGA | |
| Min Qty | 60 | |
| Series | Spartan®-II | |
| Number of LABs/CLBs | 864 | |
| Number of Logic Elements/Cells | 3888 | |
| Total RAM Bits | 49152 | |
| Number of I/O | 260 | |
| Voltage - Supply | 2.375V ~ 2.625V | |
| Mounting Type | Surface Mount | |
| Operating Temperature | 0°C ~ 85°C (TJ) | |
| Package / Case | 456-BBGA | |
| Supplier Device Package | 456-FBGA (23x23) |
XC2S150-5FG456C Overview
The XC2S150-5FG456C is part of the Xilinx Spartan-II FPGA family, offering a cost-effective and flexible solution for programmable logic designs. It provides approximately 150,000 system gates, comes in a 456-pin FG package, and features a -5 speed grade, making it suitable for designs requiring moderate to high logic density and ample I/O resources. Typical applications include communication systems, industrial automation, Embedded control, and educational or prototyping projects.
When sourcing the XC2S150-5FG456C, it is recommended to work with an authorized Xilinx Distributor to ensure genuine components, reliable supply, and access to technical support. Authorized distributors can also provide design resources, reference materials, and guidance, helping engineers efficiently develop and deploy FPGA-based solutions.
