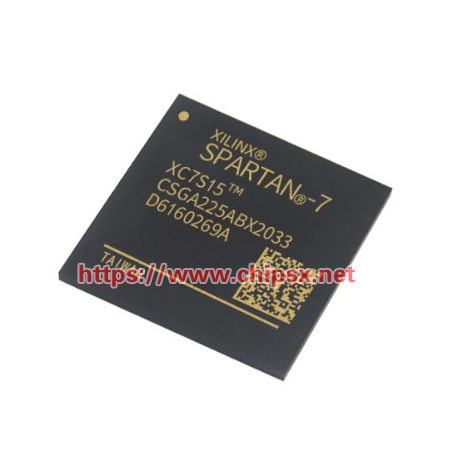

XC7S15-2CSGA225C

The XC7S15-2CSGA225C is a specific model within Xilinx's Spartan-7 FPGA family. Spartan-7 FPGAs are known for their balance of performance and cost-effectiveness, making them suitable for a wide range of electronic applications. Let's delve into the details of this particular FPGA:

Series: The XC7S15 is part of the Spartan-7 series of FPGAs, designed to offer a cost-effective solution with respectable performance capabilities.

Speed Grade (-2): The "-2" speed grade typically indicates a lower performance rating compared to "-1" speed grade variants, suitable for applications where high-speed processing is not critical.

Package Type (CSGA225): CSGA225 signifies the package type and pinout of this FPGA, specifying its physical dimensions and pin arrangement. The "225" likely indicates the number of pins or balls on the package.

Unique Features ("C"): The "C" suffix in the part number may denote specific features or characteristics that differentiate this FPGA model from others within the same family. These features could include additional functionality or tailored performance characteristics.

Industry Applications:

The XC7S15-2CSGA225C FPGA can find utility in various industry sectors, including but not limited to:

Industrial Automation: It can be used in industrial control and automation systems for tasks such as process control, robotics, and factory automation. Its adaptability caters to various industrial needs.

Embedded Systems: This FPGA can be integrated into embedded systems, including control systems for appliances, security systems, and IoT (Internet of Things) devices, providing hardware acceleration and customization.

Consumer Electronics: It may find applications in consumer electronics devices, such as displays, gaming consoles, and audio/video equipment, contributing to enhanced functionality and performance.

Prototyping and Development: FPGAs like the XC7S15-2CSGA225C are commonly used for rapid prototyping and development of custom digital logic circuits and algorithms.

Educational and Research Projects: Educational institutions and researchers often use FPGAs for teaching and experimentation due to their programmability and versatility.

Low-Power Applications: The Spartan-7 series, including this FPGA, is designed to be power-efficient, making it suitable for battery-powered and low-power applications.

It's important to note that the specific details about the FPGA's pinout, resources, and applications would depend on the exact model variant and its configuration. Engineers and designers typically consult Xilinx's documentation, development tools, and resources to work effectively with this FPGA and tailor it to their specific project requirements.
